We will update images soon to show the correct groupset on this bike, which is the Ultegra 11 Speed.

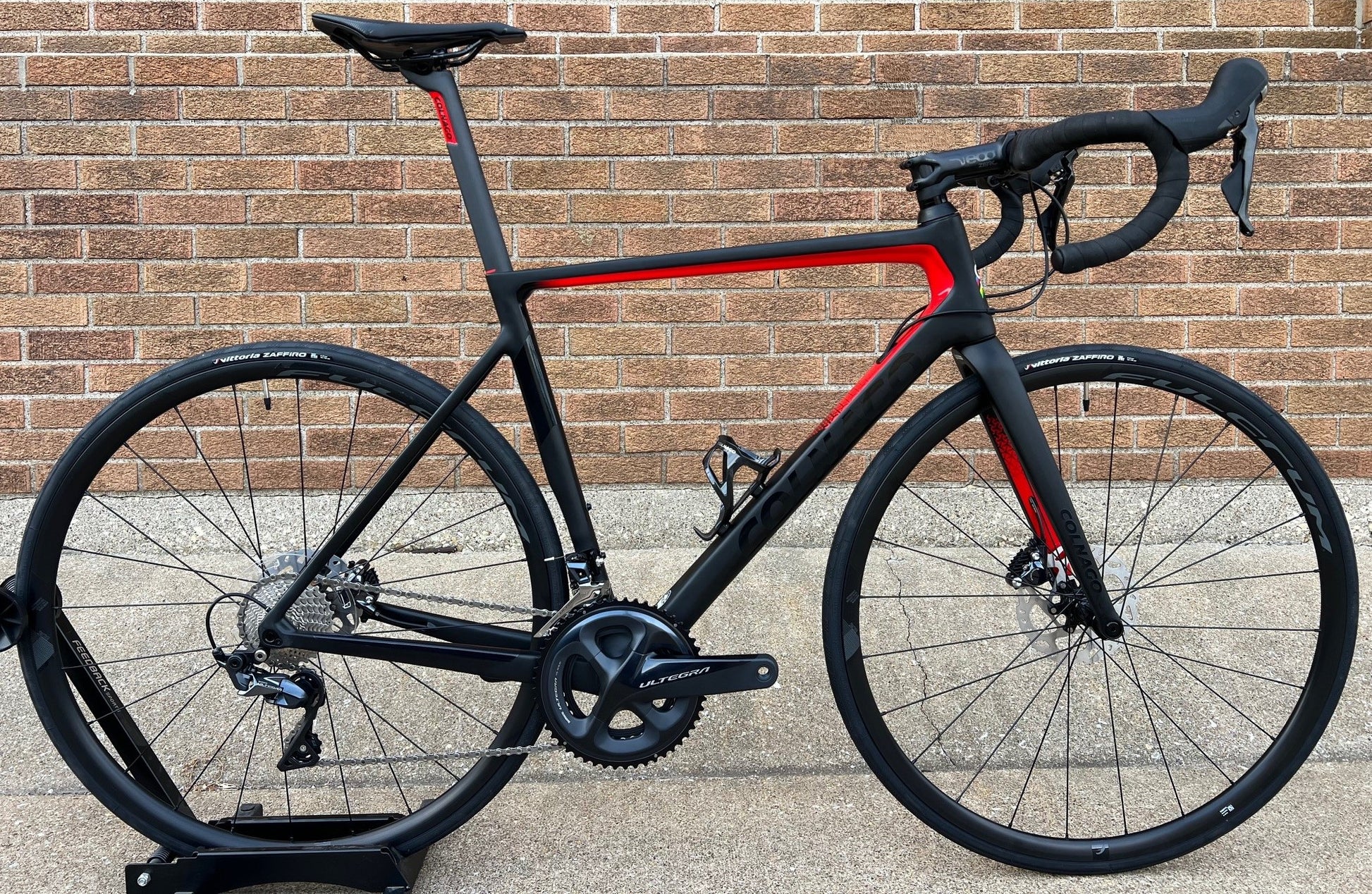

The Colnago V3 Shimano Ultegra 11 Speed Road Bike combines technical solutions aimed at lightness along with other details designed to favor aerodynamics. The frame is monocoque carbon with a clean, essential design and can fit tires up to 28 mm. With the V3 you get a beautiful, fast Colnago that won't go unnoticed.

Quality carbon and fittings designed to offer an excellent level of performance make the V3 a perfectly balanced bike in every respect. The design combines technical features with light and aerodynamic details.

The V3 uses the unique TFS Integrated fork system. The cables run inside the Collage Sr9 stem and then through the fork stem. This makes for an extremely sleek and technically more aerodynamic frame. A shorter head tube and longer fork than previous models create enhanced rideability and responsiveness. These features, combined with quality carbon, make this bike perfectly suited to both climbs and flatter terrain.

Frame kit

• Frame (material): Monocoque carbon
• Fork (material, section notes): Carbon fork for disc brakes, integrated cables, section with cut circumference
• Headset: ID30.1 OD41 36°/45°
• Seatpost: Carbon seatpost, 0.15 offset, "D-Shape" section
• Through axles: Diameter: 12 mm, length 100 mm (front) - 142 mm (rear)

Drivetrain

• Shifting system: Shimano Ultegra Disc 11 Speed
• Front derailleur: Shimano Ultegra 11 Speed
• Rear derailleur: Shimano Ultegra 11 Speed
• Chain: Shimano Ultegra 11 Speed
• Crankset: Shimano Ultegra 11 Speed
• Cassette: Shimano Ultegra
• Bottom bracket: Shimano SM-BB72-41B Press Fit Movement 86.5x41
• Crank length: Sizes 42s - 48s: 170 mm, Sizes 50s - 54s: 172.5 mm, Sizes 56s - 58s: 175 mm

Brakes

• Brakes: Shimano
• Disc size: 160 mm Front/140 mm Rear
• Brake lever: Shimano Ultegra 11 Speed
• Brake caliper: Shimano Ultegra

Wheels

• Wheels: Fulcrum Racing 600 DB - Tubeless ready
• Material: Rims: aluminum, Spokes: stainless steel
• Rim height: Front: 24 mm; Rear: 24 mm
• Internal channel width: 20 mm
• Hubs: Aluminum, Sealed Cartridge Bearings
• Through axles: Front: HH12-100 - Rear: HH12-142
• Tires: Pirelli P7 Sport 28 mm
• Maximum tire size: 28 mm (nominal width)

Components

• Saddle: Prologo Kappa BK, Selle Italia Model X BB FEC
• Handlebar: Deda Zero2; Sizes 42s - 48s: Width: 400 mm, Sizes 50s - 54s: Width: 420 mm, Sizes 56s - 58s: Width: 440 mm
• Stem: Deda Zero2; Sizes 42s - 45s: Length: 90 mm, Sizes 48s - 50s: Length: 100 mm, Size 52s: Length: 110 mm, Sizes 54s - 58s: Length: 120 mm, Size 58s: Length: 130 mm
• Handlebar Tape: Colnago Grip Black
• Bottle cage: Colnago Matte Black (1x)

1CCL.V03.0TU.ULM.60C.50S.MKBR
